Place of Origin:
Shanghai,China
Brand Name:
FANGYU
Contact Us

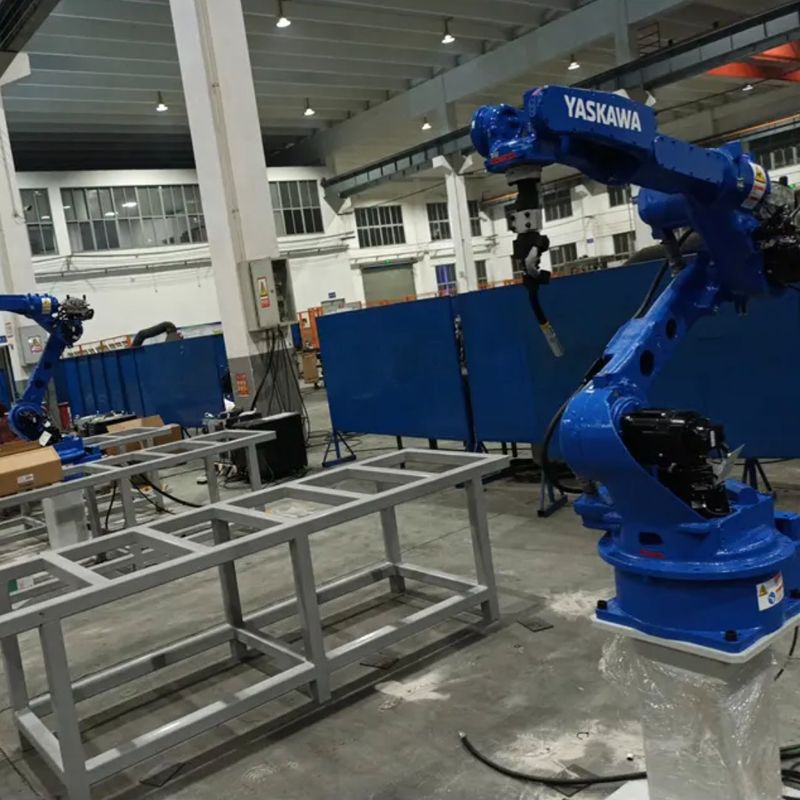

Laser Robot Welding Machine 2000W 4000W Robot Welding Machine Industri Arm Welding Robot
To be a world-leading robot expert The industrial robots are fastermore reliableand more precise. Every second and every motion of industrial robots matter throughout manufacturing, and that explains why robot reliability and speed come first for us. After years of updating and improving,our products have become faster and more reliable,with more functions integrated into a compact size.That makes applications easier production more stable, and intelligent manufacturing more efficient.
Specification
|
item
|
Parameter
|
|
Model No.
|
MR10-1440
|
|
Controlled axis
|
6-DOF
|
|
Max payload
|
10 kg
|
|
Max stroke
|
1440mm
|
|
IP Level
|
J1, J2-IP56; J3, J4, J5, J6-- IP67
|
|
Installation mode
|
Floor type, ceiling type
|
|
Robot mass
|
172 kg
|
|
Repeatability
|
±0.05 mm
|
|
Welding machines |
Standard: Aotai NBC-350R (MIG/MAG/CO2)
Optional: Aotai NBC-350RL (low spatter) Optional: Aotai MIG-350RP (pulse MIG) |
|
Welding current
|
350A/500A
|
|
Welding torch
|
Standard air-cooling torch with built-in anti-collision protection
|
|
Travel range
|
|
|
J1 axis S
|
±160°
|
|
J2 axis L
|
+80°~-145°
|
|
J3 axis U
|
+145°~-75°
|
|
J4 axis R
|
±190°
|
|
J5 axis B
|
+50°~-210°
|
|
J6 axis T
|
±230°
|
|
Travel Speed
|
|
|
J1 axis S
|
199.5 ˚/s
|
|
J2 axis L
|
159.3 ˚/s
|
|
J3 axis U
|
199.5 ˚/s
|
|
J4 axis R
|
392 ˚/s
|
|
J5 axis B
|
272 ˚/s
|
|
J6 axis T
|
1000 ˚/s
|
ShangHai FANGYU is a company specializing in the development, design, manufacture in one of modern science and technology of welding equipment manufacturers. Our company was established over the years, continue to introduce and absorb advanced technology, we developed more than a dozen series, more than 80 varieties, with advanced production equipment and improve the detection means. Advanced technology products, excellent performance, reasonable structure, a clean, good quality, and the best-selling country and Southeast Asia.
FAQ
Q1: How was the machine guarantee?
A1: We will provide 1 year warranty, and will supply free parts during the machine warranty period if the machine has some problems. If there is a problem with the machine, you can send it back to us to reissue a new machine/parts for you.Thus, any problems, just feel free to let us know, we will provide you with best solutions.
Q2: How can I use the machine, if I'm a new buyer?
A2: We will provide English(or other languages) manual and video for the machine you bought.The software is easy to learn with teaching video, also we provide online training services for free. If you still need our help, please contact us any time via voice all or video call both are available.
Q3: How do you control your quality?
A3: Quality is priority. The whole production procedure will be under regular inspection and strict quality control. The
complete machine will be tested to make sure they can work very well before shipping out of factory. Our machine passed CE Certificate, meet European and American standard, were exported to more than 100 Countries.
Q4: How can I know your machine is designed for my product?
A4: You can send samples to us for marking to check the quality, we can help you to do sample testing.Free sample marking service is provided.
