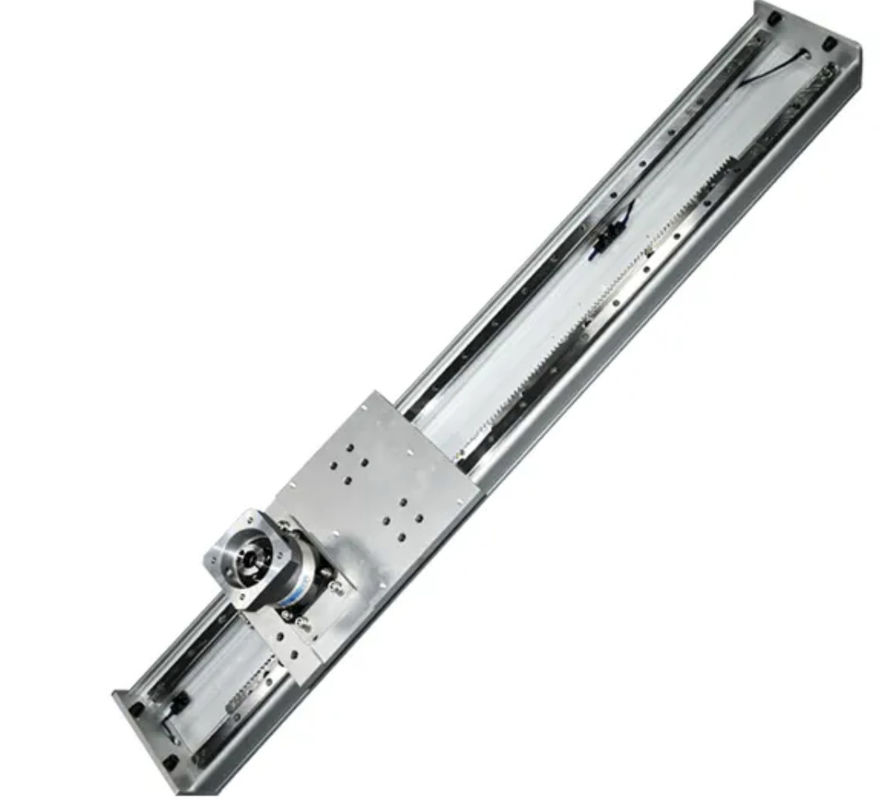

Robot Track Crossed Roller Linear Guide Bearing High Speed Cross Roller Guide Micro
Precision Rail Cross Ball Rail Micro Module
The cross roller guide pair is composed of two guide rails with V-shaped raceways, roller cages, cylindrical rollers, etc. The cylindrical rollers arranged in a cross-aligned manner reciprocate on the precision-ground V-shaped raceway surface , Can bear the load in all directions, realize high-precision, stable linear motion. A set of guide rail pair is composed of 4 guide rails with V-shaped grooves, two cages (including rollers held on them), and anti-dropping pieces installed on the ends of the guide rails to prevent the cage from punching out.
Features:
1. Low rolling friction resistance and good stability;
2. The starting friction is small, the follow-up performance is good, and it is easy to start;
3. Large contact area, small elastic deformation, many effective moving bodies, easy to achieve high rigidity and high load movement;
4. Flexible structure design, easy installation and use, low noise
Products Description
|
Items
|
Value
|
|
Product name
|
Cross Roller Guide
|
|
Brand Name
|
PINSI
|
|
Model No
|
GS 6200
|
|
Number of rollers
|
13
|
|
Length
|
200mm
|
|
Series
|
GS V6
|
|
Linear Guide Application
|
cnc plasma cutters
|
|
Width
|
30mm
|
|
Maximum stroke
|
136mm
|
|
Shipping
|
DHL
|
High rigidity
Large contact area, small elastic deformation, many effective moving bodies, easy to achieve high rigidity and high load movement.
Low friction
Low rolling friction resistance and good stability low starting friction, good follow-up performance, easy to start.
Low noise
Flexible structure design, easy installation and use, assembly of ultra-high precision rollers, extremely low noise during operation.
