1.2mm Robot PCB Power Supply Robot Motherboard Remote Control Boards PCBA Service PCB Design Service

1.2mm Robot PCB Power Supply Robot Motherboard Remote Control Boards PCBA Service PCB Design Service

1.2mm Robot PCB

Robot PCB hdi

PCB Power Supply Robot

Place of Origin:

Shanghai,China

Brand Name:

FANGYU

Contact Us

Request A Quote
Product Details
Model Number:
ZLKX-IR-202
Type:
Hdi Pcb
Place Of Origin:
Shanghai, China
Brand Name:
Fangyu
Base Material:
Aluminum
Copper Thickness:
0.2mm
Board Thickness:
1.2mm
Min. Hole Size:
0.25mm
Min. Line Width:
0.075mm
Min. Line Spacing:
0.075mm
Surface Finishing:
HASL,Lead-free HASL,ENIG
Board Size:
50*50mm-910*600mm
Product Features:
CAD+PCB+component+SMT
Technics:
Reflow And Wave Soldering
Application:
Industrial Control
Sample:
1pcs
Certification:
ISO9001
Layer:
Max 40 Layers
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
Price negotiable
Delivery Time
7-10 days
Payment Terms
TT
Supply Ability
goods in stock
Product Description

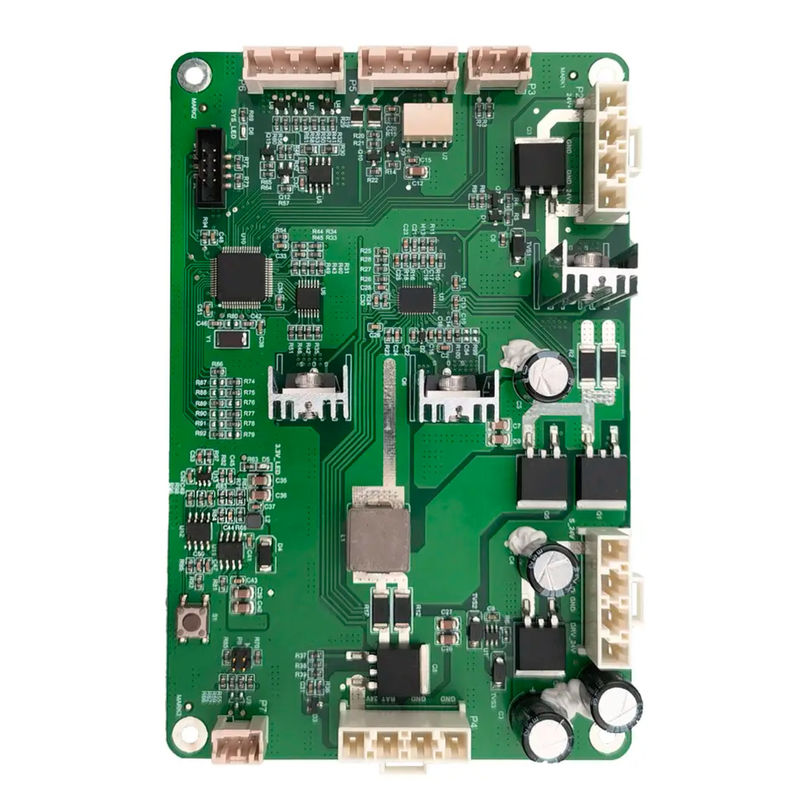

Power Supply Robot Motherboard Remote Control Boards and PCBA Service PCB design service

roducts Description
Product Name
PCB PCBA manufacturer
Application
Telecom,Medical,Industrial Control,New Energy,Automobile,Robot, 5G Server,UAV
Rigid
FR-4,High Tg FR4,High CTI FR4,Halogen FreeFR4,Copper Aluminum plate
Flexible
Rogers,Arlon,Taconic,Nelco,Isola
PCB Layer
1-40layers
PCB Shape
Rectangle,square,Round,Irregular
PCB Size
50*50mm-910mm*600mm
PCB Thickness
0.1mm-8mm
Max Finished Copper Thickness (Inner and outer)
120OZ
Min Base Copper
1/3OZ
Min Drilling Diameter
0.1mm
Min Drilling Tolerance
+/-2mil
Min Interlayer Tolerance
+/-3mil
Min Line Width/Spacing
3mil/3mil
Min Space (Hole to inner or outer side conductor)
6mil
Min BGA Diameter
8mil
HDI
1-3steps Anylayer
Surface Finished
HASL,Lead-free HASL,ENIG, Ni/Au Plating,Gold Finger,Immersion Silver/Tin, OSP,ENIPGManufacturer Service
Project Development Service
FANGYU offers product research and development services according to the customer’s specification requirements. If the project feasibility assessment is OK, the whole solutions including the software,hardware will be output. After the sample is made and tested, it will be further provided to customer for verification or scheme revision. Finally, it is determined to end the research and development program, or continue to carry out the production of batch products according to the customer’s demand.


The following files are required for project development:
1: Detailed function description
2: Technical parameters description
3: Design cycle requirements
4: Batches cost requirements



PCB Design Service

FANGYU offers PCB design services according to the customer’s specification requirements. The customer provides DSN/SCH schematic file and PCB package library file, or the corresponding device DataSheet. The customer shall provide PCB board structure files in DXF format, structure restriction instructions, electrical design instructions and other matters needing attention. After the project is started, our engineers shall conduct DRC inspection of schematic drawings, structural check and other electrical design requirements. If there is any problem, feedback EQ record to the customer as soon as possible. In the process of project design, our engineers' daily work progress files are sent to customers for confirmation. Customers can see the design status every day, and can find problems in time and deal with them. After the Pcb Layout design is completed, our engineers will conduct mutual inspection, including DFM inspection, QA inspection and EMC inspection. After the customer confirms OK, we will issue GERBER and other production documents. After the customer confirms OK, our engineers will output ASM assembly files, SMT patch files, PCB design original files, GERBER files, EQ engineering communication records, etc.


The following files are required for PCB design:
1: DSN/SCH format Schematic diagram
2: PCB footprint
3: Package library file/main devices datasheet
4: Outline structure drawing/DXF format/DWG format
5:Layout/wiring/timing/frequency/speed/current and other electrical design requirements
6: Reference board/PCB or BRD format

1.2mm Robot PCB Power Supply Robot Motherboard Remote Control Boards PCBA Service PCB Design Service 0

Company Profile

FANGYU is a EMS service provider focusing on high-precision, high-reliability electronic products of "multi-variety, sample and serial production, fast delivery“.
Its based in shanghai, relying on the perfect supporting conditions and scientific research development prospects of shanghai's high-tech development.
We integrate PCB design, PCB manufacturing, electronic component procurement, PCBA samples and serial production in one-stop service, which can effectively improve customer R&D and meet multi mode production demands. The product filed covers Industrial
Control,Telecom,Medical,Automotive,Computer,Robot,Power equipment etc. The quality system certification obtained including the ISO9001,IATF16949.
