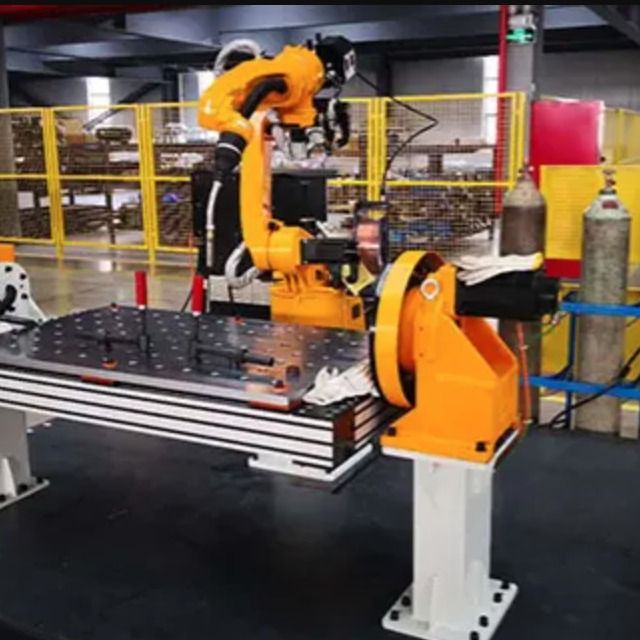

Fully Automatic Welding Robotic Workstations Garment Shops Hotels

Fully Automatic Welding Robotic Workstations Garment Shops Hotels

Welding Robotic Workstations

Fully Automatic Robotic Workstations

Hotels Welding Robot

Place of Origin:


Brand Name:


Contact Us

Request A Quote
Product Details
Machine Type:
Welding Rotator
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising Company, Ot
Showroom Location:
Video Outgoing-inspection:
Machinery Test Report:
Marketing Type:
New Product 2020
Warranty Of Core Components:
1 Year
Core Components:
PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Place Of Origin:
1 Year
Key Selling Points:
Fully Automatic Welding Station
Product Name:
Fully Automatic Welding Station
Automatic Welding
After Warranty Service:
Video Technical Support
Local Service Location:
After-sales Service Provided:
Free Spare Parts
ISO9001, CE
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price negotiable
Delivery Time
7-10 days
Payment Terms
Supply Ability
goods in stock
Product Description

Fully automatic welding robot welding room workstation


Welding robot welding room includes: welding robot, sheet metal structure, rolling door, electrical appliances, smoke exhaust, etc.
Welding robot
Adopting Japanese OTC welding robot system, stable welding, reliable quality, beautiful welding seam shape
Sheet metal structure
High-strength sheet metal structure is used to ensure the welding room is firm and reliable
Rolling door
Electric rolling shutters are adopted, which will automatically rise and fall during welding after making an appointment,
effectively preventing welding arcs and reducing personnel injuries
Electrical appliances
Control the linkage of the entire workstation equipment, coordinate the work of the workstation, and prevent confusion
Smoke outlet
Extract smoke and dust from the welding room to keep the workshop clea

Wire Touch Sense System

When robots are used for welding, the workpiece and its associated torches require good positional accuracy. However, the perfect accuracy is not always guaranteed at the welding production site. Therefore, for better and more consistent accuracy, the following contact sensing systems can be retrofitted.

1.5.1 When the wire elongation must be accurate.

Wire inspection function

During automatic welding, the wire elongation after welding may differ from the set length. This function can be used to keep the wire length stable. The robot is stopped and the wire is fretted to check whether the wire is set length.

1.5.2 When determining if the part is correctly installed.

→Workpiece inspection function

In a typical automatic welding process, the positioning of the workpieces is checked by sensors (limit switches, photocell) and the sensing of contacts reduces the need for these sensors. Before welding, the robot automatically corrects the position by moving the torch position and using the torch nozzle to inspect the workpiece.

1.5.3 When the workpiece position accuracy can not be guaranteed.

→Workpiece offset compensation function

During the robot welding process, the point taught by this function and the point at which the workpiece is detected are automatically corrected during the operation again. The correctness of the welding can be guaranteed even when the workpiece is deviated. The tip of the torch moves according to the set sensing pattern.

Fully Automatic Welding Robotic Workstations Garment Shops Hotels 0


After the production is finished for all the equipment, the seller should make suitable package for certain equipment parts and label the parts. Besides, the equipment package shall be intact during the loading, unloading and transportation.

Fully Automatic Welding Robotic Workstations Garment Shops Hotels 1
