Industrial 6kg Welding Robots In Automotive Industry 6 Axis Automatic Welding Manipulator

Industrial 6kg Welding Robots In Automotive Industry 6 Axis Automatic Welding Manipulator

6kg welding robots in automotive industry

welding robots in automotive industry 6 Axis

Automatic car welding robot

Place of Origin:

Shanghai,china

Brand Name:

FANGYU

Contact Us

Request A Quote
Product Details
Load Capacity:
6kg
Welding Material:
Carbon Steel, Stainless Steel, Galvanized Sheet
Repeatability:
±0.08mm
Number Of Axes:
1-6axis
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
Price negotiable
Delivery Time
7-10 days
Payment Terms
TT
Supply Ability
goods in stock
Product Description

Welding Robot Industrial Arm High Quality 6 Axis Welding Manipulator Automatic



Welding is a process where two materials are fused together through heating, intermixing, and then cooling the materials and/or a filler to form a strong join. From arc welding to spot welding, new and used welding robots are typically used in welding processes where the weld required is repetitive and quality and speed are crucial. Robotic welding is an automated process that increases efficiency, consistency, and your ROI.

There are several advantages to automating a factory with welding robots:
1, Taking Less Time
2, Cut the Cost of Direct Labor & Safety
3, Conserve Materials

Some companies switch to robotic welding applications gradually, starting with a single welding cell and slowly converting to a fully automated welding process. Robots can be helpful when access to a part is limited or difficult to reach

Max. load capacity
6kg
Freement movement
1622mm
Max. linear speed
1100mm/s
Repeatability
±0.08mm
Coordinate control
Joint,tool,workpiece coordinate
Max. working range
1 axis:±140°
2 axis:+60° -90°
3 axis:+90° -60°
4 axis:±180°
5 axis:+110°
6 axis:±360°
Max. working radius
1800mm
Welding materiala
Carbon steel, stainless steel, galvanized sheet and so on

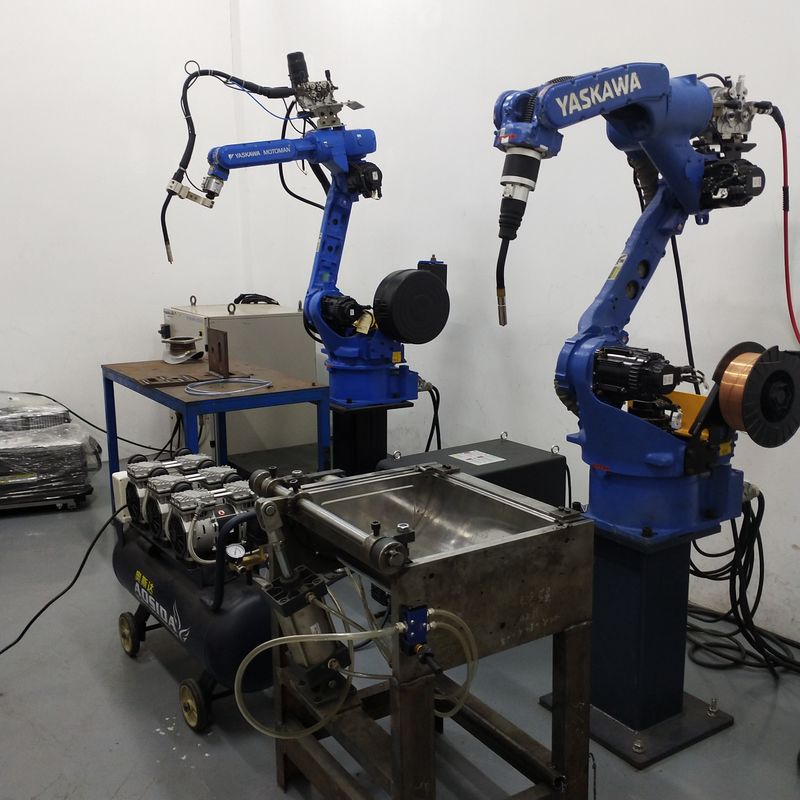

Industrial 6kg Welding Robots In Automotive Industry 6 Axis Automatic Welding Manipulator 0Industrial 6kg Welding Robots In Automotive Industry 6 Axis Automatic Welding Manipulator 1

FAQ:

What is the voltage?
A:380V (can add Voltage converter(Optional))
Does it have programmable safety? (Similar to Fanuc DCS or Motoman FSU) The robot program is not open to the public,can not be programmed at will, with absolute security.So,yes,we have programmable safety
What programming language does it use? PTP/LINE(English)
What are the data types of the data exchange (Profinet Communication)
accordingto thesetting robot positions from PLC, and Reading robot positions to PLC ?
A: By Word
What the regular period of robot encoder battery? A: 3 to 5 years.
Whatcommunication formats does it have? (ie profinet, ethernet IPEthercat etc) Seeattached(You can contact me through email and I will give you the detailed documents)
