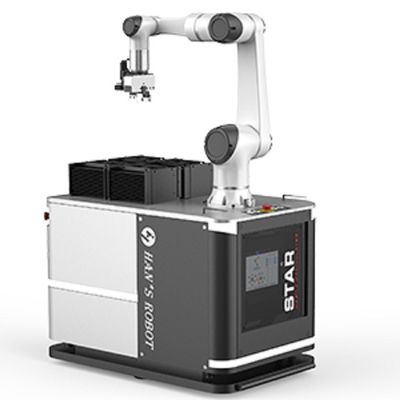

Two Wheel AGV Mobile Collaborative Robot Arm 1000mm
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Han's robot |
Payment & Shipping Terms:
| Price: | Negotiable |
|---|---|
| Supply Ability: | 50 Set/Sets per Month |
|
Detail Information |
|||
| Features: | Hand Guiding | Application: | Pick And Place ,welding ,handling,spraying |
|---|---|---|---|
| Condition: | New | Warranty: | 1 Year |
| Power: | 400W | Voltage: | DC 48V |
| Applicable Industries: | Garment Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Food Shop, Printing Shops, Food & Beverage Shops | Showroom Location: | None |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Pressure Vessel, Gear | Product Name: | Han's Star Mobile Robot Two-wheel Differential Driving Agv Robot |
| Type: | Star Mobile Robot | Payload: | 15kg |
| Reach: | 1000mm | Alarm Way: | Speaker, 3-color Light |
| Lifting Mechanism Of Driving Unit: | ±360° | AGV Repeated Positioning Accuracy:: | Maximum ±10mm |
| Arm Repeated Positioning Accuracy:: | ±0.05mm | Safety Device: | Lidar, Bumper, E-STOP |
| Endurance:: | No Load: 12h, Full-load: 8h | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts | Local Service Location: | None |
| Port: | Shanghai | ||
| High Light: | Mobile Collaborative Robot Arm,1000mm Collaborative Robot Arm,AGV mobile robot arm |
||
Product Description
Han's Star Mobile Robot two-wheel differential driving robot arm 6 axis agv robot and agv helmet
Product Description
Star Mobile Robot
Product Category: Star Mobile Robot
Star robot is mainly used in unmanned workshops of electronics and machining industry. It can automatically grab objects,handle and transport work pieces with mobile robot, robot arm and machine visual system in place of workers, thus achieving unmanned production in workshops
Specifications
| dimensions: | L1100*W650*H745mm (without arm) |
| navigation: | laser SLAM/magnetic tape navigation |
| walking direction: | forward,backward,spin around(Remote control mode) |
| driving mode: | two-wheel differential driving |
| movement speed: | 18-36m/min |
| payload: | 50KG |
| maximum grip weight: | 15KG(maximum working reach1000mm,normal working reach 700mm ) |
| alarm way: | speaker, 3-color light |
| lifting mechanism of driving unit: |
one-button electric lifting |
| AGV repeated positioning accuracy: |
maximum ±10mm |
| arm repeated positioning accuracy: |
±0.05mm |
| safety device: | lidar, bumper, E-STOP |
| endurance: | no load: 12h, full-load: 8h |
| available options: | auto charge;vision;gripper |
