E05 5kg 6 Axis 800mm Collaborative Robotic Arm Aluminum Alloy
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Price: | Negotiable |
|---|
|
Detail Information |
|||
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory | Showroom Location: | Egypt, Philippines, India, Mexico, Russia, Spain |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Not Available |
| Marketing Type: | Hot Product 2019 | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Condition: | New |
| Warranty: | 1 Year, 1 Year | Product Name: | CNC Robot Arm Han's Collaborative Robot Arm And Arm Robot China |
| Number Of Axis: | 6 Axis | Max Payload: | 5 Kg |
| Maximum Reach: | 800 Mm | Pose Repeatability(ISO 9283): | ±0.05mm |
| Material: | Aluminum Alloy | Protection Rating: | IP54 |
| Mounting Position: | Floor/ Ceiling/Wall | Life Time: | 30000h |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts | Local Service Location: | Egypt, Philippines, India, Mexico, Russia, Spain |
| After-sales Service Provided: | Online Support | Port: | Shanghai |
| High Light: | 800mm collaborative robotic arm,800mm 6 Axis collaborative robotic arm,E05 cobot robot arm |
||
Product Description

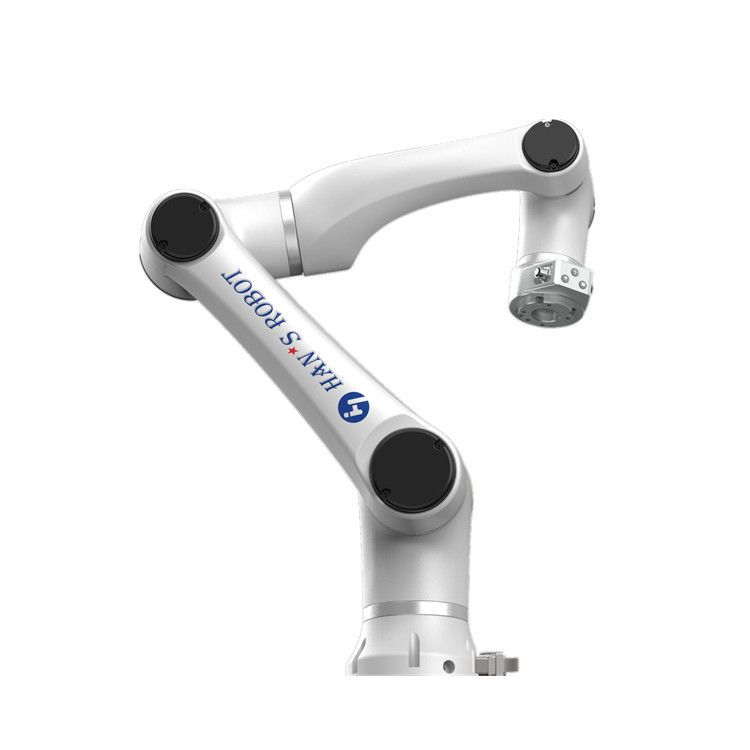

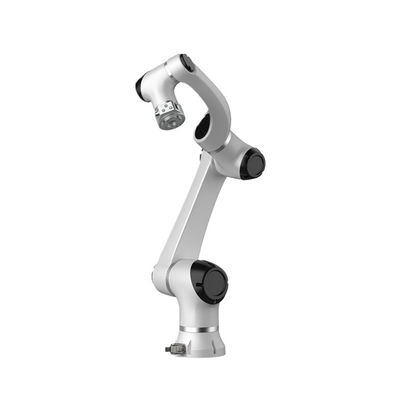

CNC robot arm Han's Elfin E05 payload 5 Kg 6 axis reach 800 mm Collaborative robot arm and arm robot China
Main Specifications:
Maximum reach:800 mm
Maximum payload:5 kg
Pose repeatability (ISO 9283):± 0.05 mm
Number of axes:6
Mounting position:Floor/ Ceiling/Wall
Lifetime:30000h
Standard:CE, TUV,KSc
Power consumption:200W
Power supply:DC 48V
I/O port:16 in/16 out
Screen:12 inch Resistive LCD touch screen
| Product Name | CNC robot arm Han's Elfin 5 payload 5 Kg 6 axis reach 800 mm Collaborative robot arm and arm robot China |
| Application | CNC robot arm Han's Elfin 5 payload 5 Kg 6 axis reach 800 mm Collaborative robot arm and arm robot China; Collaborative robot arm ;CNC robot arm; arm robot China |
| Model | Elfin 5 |
| Robot Arm | |
| Maximum reach | 800 mm |
| Maximum payload | 5 kg |
| Pose repeatability (ISO 9283) | ± 0.05 mm |
| Number of axes | 6 |
| Mounting position | Floor/ Ceiling/Wall |
| Lifetime | 30000h |
| Weight | 17 kg |
| Protection rating | IP54 |
| Standard | CE, TUV,KSc |
| Power consumption | 200W |
| Material | Aluminum alloy |
| Ambient temperature | 0-45°C |
| Environment humidity | 20-85%(No condensation) |
| Power supply | DC 48V |
| Protocol | CAN bus |
| A1 | ±135° |
| A2 | ±135° |
| A3 | ±135° |
| A4 | ±135° |
| A5 | ±135° |
| A6 | ±135° |
| Controller | |
| Size | 536mm*445mm*491mm |
| Weight | 20Kg |
| Cable length | 5m |
| Colour | Black |
| Protocol | Ethernet,Modbus-RTU/TCP |
| Power | 100-240V/AC,50-60HZ |
| Protection rating | IP54 |
| I/O port | 16 in/16 out |
| Teach pendant | |
| Size | 355mm*235mm*54mm |
| Weight | 1.8Kg |
| Screen | 12 inch Resistive LCD touch screen |
| Cable length | 4m |
| Protection rating | IP54 |
| Colour | Orange+black |
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
