Universal Collaborative 6 Axis Robot Arm 5kg Payload UR5
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Price: | Negotiable |
|---|---|
| Packaging Details: | One sets of UR robot universal UR5 UR5e 6 axis 5kg payload robot arm and cobot robot packing with pallet+brown box. Size:80*80*60cm, WG:80Kg |
| Supply Ability: | 5 Piece/Pieces per Month |
|
Detail Information |
|||
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Egypt, United States, Italy, Peru, Saudi Arabia, Spain |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Not Available |
| Marketing Type: | Hot Product 2019 | Warranty Of Core Components: | 1 Year |
| Core Components: | Pump | Condition: | New |
| Warranty: | 1 Year, 1 Year | Product Name: | UR Robot Universal UR5 UR5e 5kg Payload Robot Arm And Cobot Robot |
| Number Of Axis: | 6 Axis | Max Payload: | 5Kg |
| Maximum Reach: | 850mm | Pose Repeatability(ISO 9283): | ±0.1mm |
| Material: | Aluminum Alloy | Protection Rating: | IP54 |
| Mounting Position: | Floor/ Ceiling/Wall | Arm Weight: | 18.4 Kg |
| After Warranty Service: | Video Technical Support, Online Support, Field Maintenance And Repair Service | Local Service Location: | Egypt, United States, Italy, Peru, Saudi Arabia, Spain |
| After-sales Service Provided: | Online Support | Port: | Shanghai |
| High Light: | UR5 6 Axis Robot Arm,Universal 6 Axis Robot Arm,5kg Payload Cobot Robot Arm |
||
Product Description
UR robot universal UR5 UR5e 6 axis 5kg payload robot arm and cobot robot
Main Specifications:
| UR5 Specification | |||
| UR robot universal UR5 UR5e 6 axis 5kg payload robot arm and cobot robot | |||
| Weight | 18.4 kg | ||
| Loading | 5 kg | ||
| Running range | 850 mm | ||
| Articular Range | +/- 360° | ||
| No limits of Last Articular rounding | |||
| Speed | All wrist joint ; 360 degree/second | ||
| other Joint : 180 degree/second | |||
| Tool : Normal 1 m/sec. 39.4 inches/sec | |||
| Tool | Normal 1 m/sec. 39.4 inch/sec. | ||
| Reiterate Range | +/- 0.1 mm | ||
| Bottom width | Ø118 mm | ||
| Free roll degree | 6 units round joints | ||
| Control Box Size(WxHxD) | 475 mm x 423 mm x 268 mm | ||
| I/O ports | Con.Box | Tool Conect | |
| Digital In | 16 | 2 | |
| Digital Out | 16 | 2 | |
| Analog In | 2 | 2 | |
| Analog out | 2 | - | |
| I/O Power Suppling | Control Box 24 V 2A &, Tool 12 V/24 V 600 mA | ||
| Communication | TCP/IP 100 Mbit: IEEE 802.3u, 100BASE-TX | ||
| Socket & Mod bus TCP | |||
| Programming | Consumer familier 12 inch touch screen Poly scope | ||
| Grapic User Interface(GUI) Installation | |||
| Noise | Comparatively non noise | ||
| IP class | IP64 | ||
| Power Usage | Around 100W in case of general program usage | ||
| Co work | 15 kinds progressed controlable safety function | ||
| Materials | Alumimun , PP Plastic | ||
| Temperature | Operating from cetigrade 0 degree to 50 | ||
| Power | 100-240 VAC, 50-60 Hz | ||
| Power Line | 6m between Robot and Control box | ||
| 4.5m between Touch screen and Control Box | |||

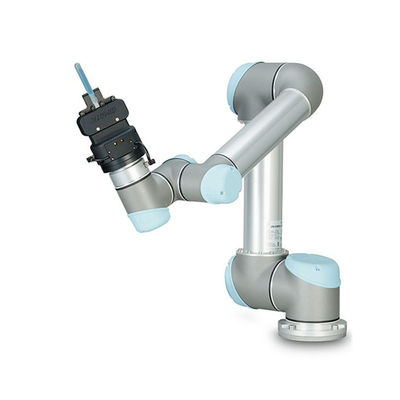

Detailed Images
