collaborative robot AUBO i3 payload 3kg picking and packing robots 6 axis
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Aubo |
Payment & Shipping Terms:
| Price: | Negotiable |
|---|---|
| Packaging Details: | One collaborative robot AUBO i3 payload 3kg picking and packing robots 6 axis packing with fumigation wooden frame, WG: 15.5 KG<br>Controller and other parts packing with brown box, WG: 30 KG<br>Total WG: 45.5 KG(>VG) |
| Supply Ability: | 5 Piece/Pieces per Month |
|
Detail Information |
|||
| Product Name: | Collaborative Robot AUBO I3 6 Axis Mini Industrial Cobot | Number Of Axis: | 6 Axis |
|---|---|---|---|
| Max Payload: | 3 Kg | Maximum Reach: | 832 Mm |
| Pose Repeatability(ISO 9283): | ±0.02mm | Material: | Aluminum Alloy |
| Protection Rating: | IP54 | Mounting Position: | Floor/ Ceiling/Wall |
| Life Time: | >30000h | Warranty: | 1 Year, 1 Year |
| Condition: | New | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | Engine, Bearing, Gearbox, Pump |
| After-sales Service Provided: | Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | United States, France, Germany, Viet Nam, Indonesia, Australia, Argentina, Algeria | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C |
| Showroom Location: | United Kingdom, United States, France, Viet Nam, Philippines, Brazil, Peru, Indonesia, Russia, Argentina, Japan, Malaysia | Port: | Shanghai |
Product Description
collaborative robot AUBO i3 payload 3kg picking and packing robots 6 axis
Main Specifications
Maximum reach:832 mm
Maximum payload:3kg
Pose repeatability (ISO 9283):± 0.02 mm
Number of axes:6
Mounting position:Floor/ Ceiling/Wall
Lifetime:30000h
Standard:CE, TUV,KSc
Power consumption:150W
Power supply:DC 48V
I/O port:16 in/16 out
Screen:12 inch Resistive LCD touch screen
| Product Name | collaborative robot AUBO i3 payload 3kg picking and packing robots 6 axis |

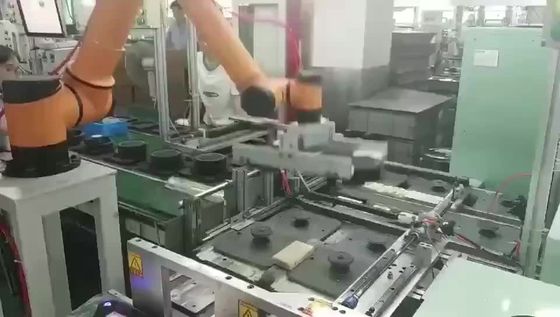

| Application | collaborative robot AUBO i3 payload 3kg picking and packing robots 6 axis ,main application welding assenbly and stacking ,palletizing collaborative. |
| Model | Aubo i3 |
| Robot Arm | |
| Maximum reach | 832 mm |
| Maximum payload | 3 kg |
| Pose repeatability (ISO 9283) | ± 0.02 mm |
| Number of axes | 6 |
| Mounting position | Floor/ Ceiling/Wall |
| Lifetime | 30000h |
| Weight | 15.5 kg |
| Protection rating | IP54 |
| Standard | CE, TUV,KSc |
| Power consumption | 150W |
| Material | Aluminum alloy |
| Ambient temperature | 0-45°C |
| Environment humidity | 20-85%(No condensation) |
| Power supply | DC 48V |
| Protocol | CAN bus |
| A1 | ±175° |
| A2 | ±175° |
| A3 | ±175° |
| A4 | ±175° |
| A5 | ±175° |
| A6 | ±175° |
| Controller | |
| Size | 380mm*350mm*258mm |
| Weight | 15Kg |
| Cable length | 5m |
| Colour | Black |
| Protocol | Ethernet,Modbus-RTU/TCP |
| Power | 100-240V/AC,50-60HZ |
| Protection rating | IP54 |
| I/O port | 16 in/16 out |
| Teach pendant | |
| Size | 355mm*235mm*54mm |
| Weight | 1.57Kg |
| Screen | 12 inch Resistive LCD touch screen |
| Cable length | 4m |
| Protection rating | IP54 |
| Colour | Orange+black |
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
