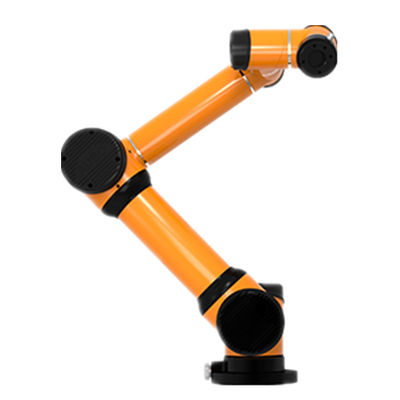

Industrial robot 5Kg payload 6 axis handling robot Aubo i5 collaborative robot arm
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | AUBO |
| Certification: | CE/ROHS |
Payment & Shipping Terms:
| Price: | Negotiable |
|---|---|
| Packaging Details: | One set of Industrial robot 5Kg payload 6 axis handling robot Aubo i5 collaborative robot arm packing with pallet+brown box ,size:80*80*60cm, Wg:80Kg |
| Supply Ability: | 10 Set/Sets per Month |
|
Detail Information |
|||
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Condition: | New |
| Weight: | 65Kg | Dimension(L*W*H): | 80*80*80cm |
| Power: | 3KW | Warranty: | 1 Year, 1 Year |
| Product Name: | Industrial Robot 5Kg Payload Handling Robot Collaborative Robot Arm | Number Of Axis: | 6 Axis |
| Max Payload: | 5 Kg | Maximum Reach: | 924.5 Mm |
| Pose Repeatability(ISO 9283): | ±0.02mm | Material: | Aluminum Alloy |
| Protection Rating: | IP54 | Mounting Position: | Floor/ Ceiling/Wall |
| Life Time: | 30000h | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | None | After-sales Service Provided: | Online Support |
| Port: | Shanghai | ||
Product Description
Industrial robot 5Kg payload 6 axis handling robot Aubo i5 collaborative robot arm
Main Specifications:
Maximum reach:924.5 mm
Maximum payload:5 kg
Pose repeatability (ISO 9283):± 0.02 mm
Number of axes:6
Mounting position:Floor/ Ceiling/Wall
Lifetime:30000h
Standard:CE, TUV,KSc
Power consumption:200W
Power supply:DC 48V
I/O port:16 in/16 out
Screen:12 inch Resistive LCD touch screen
| Product Name | Industrial robot 5Kg payload 6 axis handling robot Aubo i5 collaborative robot arm |
| Application | Industrial robot ;handling robot ; collaborative robot arm; |
| Model | Aubo i5 |
| Robot Arm | |
| Maximum reach | 924.5 mm |
| Maximum payload | 5 kg |
| Pose repeatability (ISO 9283) | ± 0.02 mm |
| Number of axes | 6 |
| Mounting position | Floor/ Ceiling/Wall |
| Lifetime | 30000h |
| Weight | 24 kg |
| Protection rating | IP54 |
| Standard | CE, TUV,KSc |
| Power consumption | 200W |
| Material | Aluminum alloy |
| Ambient temperature | 0-45°C |
| Environment humidity | 20-85%(No condensation) |
| Power supply | DC 48V |
| Protocol | CAN bus |
| A1 | ±175° |
| A2 | ±175° |
| A3 | ±175° |
| A4 | ±175° |
| A5 | ±175° |
| A6 | ±175° |
| Controller | |
| Size | 727mm*623mm*235mm |
| Weight | 20Kg |
| Cable length | 5m |
| Colour | Black |
| Protocol | Ethernet,Modbus-RTU/TCP |
| Power | 100-240V/AC,50-60HZ |
| Protection rating | IP54 |
| I/O port | 16 in/16 out |
| Teach pendant | |
| Size | 355mm*235mm*54mm |
| Weight | 1.8Kg |
| Screen | 12 inch Resistive LCD touch screen |
| Cable length | 4m |
| Protection rating | IP54 |
| Colour | Orange+black |
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
