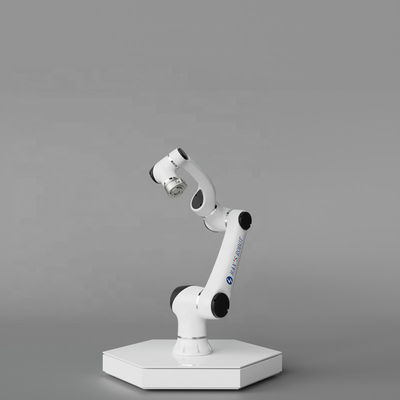

6 axis cobot arm 10 payload 12 Kg mainly for cobot cnc elfin robot collaborative robotic arm
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Hans |
Payment & Shipping Terms:
| Price: | Negotiable |
|---|---|
| Packaging Details: | One 6 axis cobot arm 10 payload 12 Kg mainly for cobot cnc elfin robot collaborative robotic arm packing with brown box. WG:45kg<br><br>Teach pendant , cables, controller packing with another brown box , WG:35Kg |
| Supply Ability: | 5 Piece/Pieces per Month |
|
Detail Information |
|||
| Features: | Collaborative Robot Am | Application: | Handling |
|---|---|---|---|
| Condition: | New | Warranty: | 1 Year, 1 Year |
| Power: | 350 | Voltage: | 220 |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert | Weight (KG): | 78 |
| Showroom Location: | United Kingdom, United States, Italy, France, Germany, India | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | Gearbox, Motor |
| Product Name: | 6 Axis Cobot Arm For Cobot Cnc Elfin Robot Collaborative Robotic Arm | Number Of Axis: | 6 Axis |
| Max Payload: | 12 Kg | Maximum Reach: | 1000 Mm |
| Pose Repeatability(ISO 9283): | ±0.05mm | Material: | Aluminum Alloy |
| Protection Rating: | IP54/IP66 | Mounting Position: | Floor/ Ceiling/Wall |
| Life Time: | 30000h | Port: | Shanghai |
Product Description
6 axis cobot arm 10 payload 12 Kg mainly for cobot cnc elfin robot collaborative robotic arm
Main Specifications:
Maximum reach:1000 mm
Maximum payload:12 kg
Pose repeatability (ISO 9283):± 0.05 mm
Number of axes:6
Mounting position:Floor/ Ceiling/Wall
Lifetime:30000h
Standard:CE, TUV,KSc
Power consumption:200W
Power supply:DC 48V
I/O port:16 in/16 out
Screen:12 inch Resistive LCD touch screen
| Product Name | 6 axis cobot arm 10 payload 12 Kg mainly for cobot cnc elfin robot collaborative robotic arm |
| Application | 6 axis cobot arm ; cobot cnc; elfin robot collaborative robotic arm |
| Model | Elfin 10 |
| Robot Arm | |
| Maximum reach | 1000 mm |
| Maximum payload | 12 kg |
| Pose repeatability (ISO 9283) | ± 0.05 mm |
| Number of axes | 6 |
| Mounting position | Floor/ Ceiling/Wall |
| Lifetime | 30000h |
| Weight | 17 kg |
| Protection rating | IP54 |
| Standard | CE, TUV,KSc |
| Power consumption | 200W |
| Material | Aluminum alloy |
| Ambient temperature | 0-45°C |
| Environment humidity | 20-85%(No condensation) |
| Power supply | DC 48V |
| Protocol | CAN bus |
| A1 | ±135° |
| A2 | ±135° |
| A3 | ±135° |
| A4 | ±135° |
| A5 | ±135° |
| A6 | ±135° |
| Controller | |
| Size | 536mm*445mm*491mm |
| Weight | 20Kg |
| Cable length | 5m |
| Colour | Black |
| Protocol | Ethernet,Modbus-RTU/TCP |
| Power | 100-240V/AC,50-60HZ |
| Protection rating | IP54 |
| I/O port | 16 in/16 out |
| Teach pendant | |
| Size | 355mm*235mm*54mm |
| Weight | 1.8Kg |
| Screen | 12 inch Resistive LCD touch screen |
| Cable length | 4m |
| Protection rating | IP54 |
| Colour | Orange+black |
