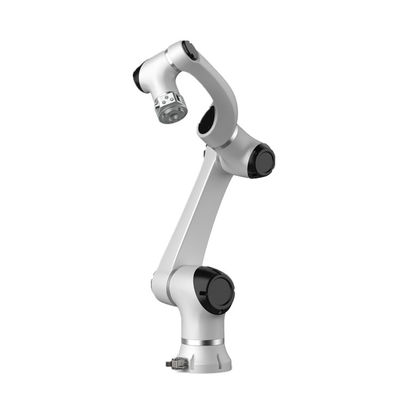

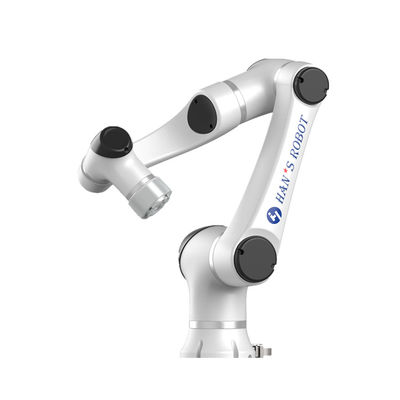

China Arm Robot Collaborative Hans E3 as Factory Painting Robot Arm with Payload 3Kg Reach 590mm Robotic Arm 3kg
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Hans |
| Certification: | CE |
Payment & Shipping Terms:
| Price: | Negotiable |
|---|---|
| Packaging Details: | ONE China Arm Robot Collaborative Hans E3 as Factory Painting Robot Arm with Payload 3Kg Reach 590mm Robotic Arm 3kg packing with fumigation wooden frame, <br>Total WG:100KG(>VG) |
| Supply Ability: | 5 Piece/Pieces per Month |
|
Detail Information |
|||
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Condition: | New |
| Weight: | 17kg, 17kg | Dimension(L*W*H): | 800*800*800 |
| Power: | About 180 W | Warranty: | 1 Year |
| Product Name: | Hans Robot EIfin3 | Function: | Multifunctional |
| Controlled Axes: | 6 | Max. Payload: | 3kg |
| Repeatability: | ±0.05mm | Max. Working Range: | 590mm |
| Temperature: | 0-50 ℃ | I/O Power: | 24V 2A |
| IP Class: | IP54 | After Warranty Service: | Video Technical Support, Online Support, Field Maintenance And Repair Service |
| Local Service Location: | None | After-sales Service Provided: | Field Installation, Commissioning And Training |
| Port: | Shanghai | ||
Product Description
China Arm Robot Collaborative Hans E3 as Factory Painting Robot Arm with Payload 3Kg Reach 590mm Robotic Arm 3kg
Elfin Series Collaborative Robot
Features
Safer work
With Elfin robots, there is no need to pay extra for safe operation the same as traditional robots. The robots have high collaborative performance and can perform a protective stop immediately when they encounter resistance, ensuring the safety among co-worker, workpieces, and production equipment.
More Flexible Deployment
Elfin robots can be mounted at any angle and installed anywhere to minimize the impact on the production lines.Redeployment requires very short time and is very suitable for small batches, customized and short-cycle production, which is the best choice for automation transformation.
Easier Operation
Elfin robots can be easily teached by moving the end of the arm to the desired position or desired trajectory,which is greatly saves the programing time. 10 minutes is absolutely enough for building one simple pick and place program.
Fast, Stable Ether CAT bus communication
The controller and robot joint adopt industrial EtherCAT communication, which enables the system to have excellent control performance and strong an-interference ability.
| Product Name | China Arm Robot Collaborative Hans E3 as Factory Painting Robot Arm with Payload 3Kg Reach 590mm Robotic Arm 3kg |
| Weight | 17kg |
| Payload | 3kg |
| reach | 590mm |
| power | 100W in typical cycle |
| joint range | ±360° |
| joint speed | J1-J4 180°/S J5-J6 200°/S |
| tool speed | 2m/s |
| repeatability | ±0.05mm/±0.03mm(under normal conditions) |
| degree of freedom | 6 |
| control box size | 536*445*319mm |
| end I/O port | digital input:3,digital output:3,analog input:2 |
| control box I/O port | digital input:16,digital output:16, analog input:2,analog output:2 |
| I/O source | 24V 2A |
| communication | TCP/IP/MODBUS |
| programming | graphical programming,remote process call |
| IP classification | IP54/IP66 |
| collaborative operation | 10 advanced configurations for safety |
| main material | aluminum alloy |
| working temperature | 0-50℃ |
| power input | 200-240V AC,50-60Hz |
| cable | cable to connect the control box:5m,cable to connect teach pendant:5m |
Hans Robot EIfin3 Introduction:
Elfin robot is a new type of human-machine collaborative six-axis robot. Its overall design is lightweight, modular, compact and beautiful, and it can flexibly accommodate to all kinds of complicated and varying industrial production environments.
Robot Working Space
The working space of robot refers to the area within 800 mm around the joint of robot base. When selecting the location to install robot, considerations should be given to the cylinder space above and below the robot. Please try to keep the tool away from the cylindrical space as much as possible, otherwise it will cause the situation where the tool moves slowly and joints move too fast, which leads to the low efficiency of robot and difficult risk assessment. The max payload of EIfin3 is 3kg, and max reach is 590mm. It is suitable in various of circumstances. We can use it to do the picking, spray painting, spot welding and etc.
