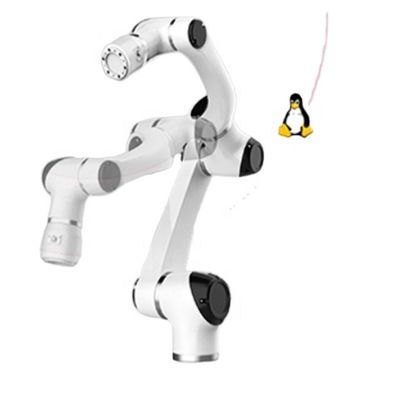

Chinese new brand HANS laser collaborative robot 6 axis robotic arm Elfin 5 tig welding robot
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | HANS |
Payment & Shipping Terms:
| Price: | Negotiable |
|---|---|
| Packaging Details: | One Chinese new brand HANS laser collaborative robot 6 axis robotic arm Elfin 5 tig welding robot packing with fumigation wooden frame, WG: 17KG<br>Controller and other parts packing with brown box, WG: 75KG<br>Total WG: 92KG(>VG) |
| Supply Ability: | 5 Piece/Pieces per Month |
|
Detail Information |
|||
| Product Name: | Elfin 5 | Number Of Axis: | 6 Rotating Joints |
|---|---|---|---|
| Max Payload: | 5kg | Maximum Reach: | 800 Mm |
| Pose Repeatability(ISO 9283): | ±0.05 (in Normal Condition) | Power Supply: | 180W In Typical Cycle |
| Mounting Position: | Floor, Wall, Shelf, Tilted, Inverted | Power Consumption: | Min 90W, Typical 125W, Max 250W |
| Material: | Aluminium, PP Plastics | Protection Rating: | IP54 |
| Condition: | New | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Gearbox, Motor, Pressure Vessel |
| Warranty: | 1 Year | After-sales Service Provided: | Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | United Kingdom, Italy, France, Germany, Brazil, Mexico, Russia, Thailand, Japan |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works | Showroom Location: | France, Germany, Brazil, India, Mexico, Russia, Spain, Thailand, Romania, Japan, Australia |
| Port: | Shanghai | ||
Product Description
Chinese new brand HANS laser collaborative robot 6 axis robotic arm Elfin 5 tig welding robot
Main Specifications
Model: Elfin 5
Maximum reach: 800mm
Maximum payload: 3kg
Pose repeatabilit: ±0.05 (in normal condition)
Number of axes :6 rotating joints
Weight: 23kg
Protection rating:IP54
| Production Name | HANS Elfin 5 |
| Model | Elfin 5 |
| Application | Collaborative Robot |
| Maximum reach | 800 mm |
| Maximum payload | 5 kg |
| Pose repeatability (ISO 9283) | ±0.05 (in normal condition) |
| Number of axis | 6 |
| Mounting position | any angle |
| Footprint | |
| Weight | 23 kg |
| Protection rating | IP54 |
| Power Input | 100-240 AC, 50-60 Hz |
| Motion range | |
| A1 | ± 360° |
| A2 | ± 360° |
| A3 | ± 360° |
| A4 | ± 360° |
| A5 | ± 360° |
| A6 | ± 360° |
