JAKA Zu 12 low cost collaborative robot arm replacing labor carrying humanoid cobot with 6 axis collaborative robot
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | JAKA |
Payment & Shipping Terms:
| Price: | Negotiable |
|---|---|
| Packaging Details: | One JAKA Zu 12 low cost collaborative robot arm replacing labor carrying humanoid cobot with 6 axis collaborative robot packing with fumigation wooden frame, WG: 41KG<br>Controller and other parts packing with brown box, WG: 30 KG<br>Total WG:71 KG(>V |
| Supply Ability: | 5 Piece/Pieces per Month |
|
Detail Information |
|||
| Condition: | New | Production Capacity: | 1 Year |
|---|---|---|---|
| Voltage: | 220 | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works |
| Weight (KG): | 80 | Showroom Location: | United Kingdom, United States, Italy, France, Germany, India |
| Video Outgoing-inspection: | Not Available | Machinery Test Report: | Not Available |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | Gearbox, Motor | Product Name: | JAKA Zu 12 Low Cost Collaborative Robot Arm |
| Number Of Axis: | 6 Axis | Max Payload: | 12 Kg |
| Maximum Reach: | 1327mm | Pose Repeatability(ISO 9283): | ±0.03mm |
| Material: | Aluminum Alloy And PC Plastic | Protection Rating: | IP54 |
| Mounting Position: | Any Angle | Life Time: | 30000h |
| Warranty: | 1 Year | Port: | Shanghai |
Product Description
JAKA Zu 12 low cost collaborative robot arm replacing labor carrying humanoid cobot with 6 axis collaborative robot
Main Specifications
Maximum reach:1327 mm
Maximum payload:12 kg
Pose repeatability (ISO 9283):± 0.03 mm
Number of axes:6
Mounting position:any angle
Lifetime:30000h
Standard:CE, TUV,KSc
Power consumption:500W
Power supply:DC 24V
I/O port:16 in/16 out
Screen:12 inch Resistive LCD touch screen
| Product Name | JAKA Zu 12 low cost collaborative robot arm replacing labor carrying humanoid cobot with 6 axis collaborative robot |

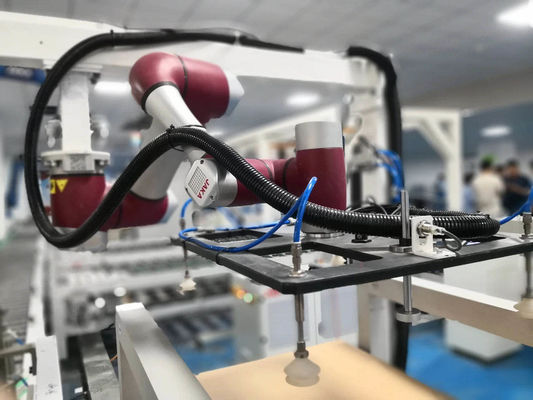

| Application | JAKA Zu 12 low cost collaborative robot arm replacing labor carrying humanoid cobot with 6 axis collaborative robot mainly apply in high precision handling assembly |
| Model | JAKA Zu 12 |
| Robot Arm | |
| Maximum reach | 1327mm |
| Maximum payload | 12 kg |
| Pose repeatability (ISO 9283) | ± 0.03 mm |
| Number of axes | 6 |
| Mounting position | any angle |
| Lifetime | 30000h |
| Weight | 41kg |
| Protection rating | IP54 |
| Standard | CE, TUV,KSc |
| Power consumption | 500W |
| Material | Aluminum alloy |
| Ambient temperature | 0-50°C |
| Environment humidity | 20-85%(No condensation) |
| Power supply | DC 48V |
| Protocol | CAN bus |
| A1 | ±270° |
| A2 | -85°,+265° |
| A3 | ±175° |
| A4 | -85°,+265° |
| A5 | ±270° |
| A6 | ±270° |
| Controller | |
| Size | 410mm*307mm*235mm |
| Weight | 16Kg |
| Cable length | 6m |
| Colour | silver and red |
| Protocol | Ethernet,Modbus-RTU/TCP |
| Power | 100-240V/AC,50-60HZ |
| Protection rating | IP44 |
| I/O port | 16 in/16 out |
| Teach pendant | |
| Size | 355mm*235mm*54mm |
| Weight | 1.8Kg |
| Screen | 12 inch Resistive LCD touch screen |
| Cable length | 6m |
| Protection rating | IP54 |
| Colour | silver and red |
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
