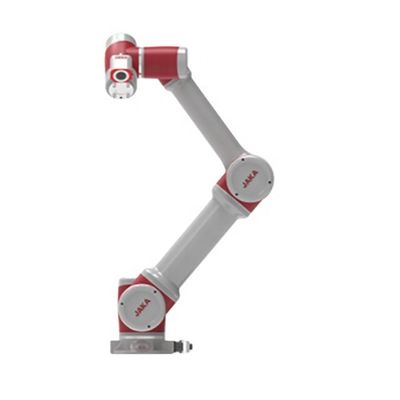

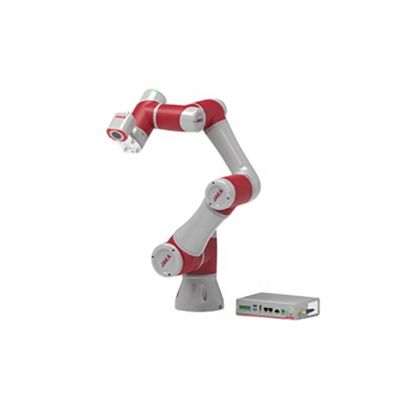

JAKA Zu 7 cobot 6 axis collaborative robot Chinese manipulator robot arm
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | jaka |
Payment & Shipping Terms:
| Price: | Negotiable |
|---|---|
| Packaging Details: | One JAKA Ai 5 cobot 6 axis collaborative robot Chinese manipulator robot arm packing with fumigation wooden frame, WG: 22KG<br>Controller and other parts packing with brown box, WG: 23 KG<br>Total WG:55 KG(>VG) |
| Supply Ability: | 10 Piece/Pieces per Month |
|
Detail Information |
|||
| Features: | Collaborative | Application: | Handling |
|---|---|---|---|
| Condition: | New | Warranty: | 1 Year |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops | Weight (KG): | 22 |
| Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Argentina | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Gearbox |
| Brand: | Jaka | Product Name: | Zu 7 Cobot 6 Axis Collaborative Robot Chinese Manipulator Robot Arm |
| Number Of Axis: | 6 Axis | Max Payload: | 7 Kg |
| Maximum Reach: | 814mm | Pose Repeatability(ISO 9283): | ±0.02mm |
| Temperature Range: | 0-50℃ | Protection Rating: | IP54 |
| Certificate: | CR, CE, 15066 | Port: | Shanghai |
Product Description
JAKA Zu 7 cobot 6 axis collaborative robot Chinese manipulator robot arm
Main Specifications
Maximum reach:814 mm
Maximum payload:7 kg
Pose repeatability (ISO 9283):± 0.02 mm
Number of axes:6
Mounting position:any angle
Lifetime:30000h
Standard:CE, TUV,KSc
Power consumption:350W
Power supply:DC 24V
I/O port:16 in/16 out
Screen:12 inch Resistive LCD touch screen
| Product Name | JAKA Zu 7 cobot 6 axis collaborative robot Chinese manipulator robot arm |
| Application | JAKA Zu 7 cobot 6 axis collaborative robot Chinese manipulator robot arm |
| Model | Zu 7 |
| Robot Arm | |
| Maximum reach | 814mm |
| Maximum payload | 7 kg |
| Pose repeatability (ISO 9283) | ± 0.02 mm |
| Number of axes | 6 |
| Certificate | CR, CE, 15066 |
| Temperature range | 0-50℃ |
| Weight | 23 kg |
| Protection rating | IP54 |
| Standard | CE, TUV,KSc |
| Power consumption | 350W |
| Material | Aluminum alloy |
| Ambient temperature | 0-50°C |
| Environment humidity | 20-85%(No condensation) |
| Power supply | DC 48V |
| Protocol | CAN bus |
| A1 | ±270° |
| A2 | -85°,+265° |
| A3 | ±175° |
| A4 | -85°,+265° |
| A5 | ±270° |
| A6 | ±270° |
| Controller | |
| Size | 410mm*307mm*235mm |
| Weight | 12Kg |
| Cable length | 6m |
| Colour | silver and red |
| Protocol | Ethernet,Modbus-RTU/TCP |
| Power | 100-240V/AC,50-60HZ |
| Protection rating | IP44 |
| I/O port | 16 in/16 out |
| Teach pendant MT(PAD/Mobile)APP | |
| Size | 355mm*235mm*54mm |
| Weight | 1.8Kg |
| Screen | 12 inch Resistive LCD touch screen |
| Cable length | 6m |
| Protection rating | IP54 |
| Colour | silver and red |
