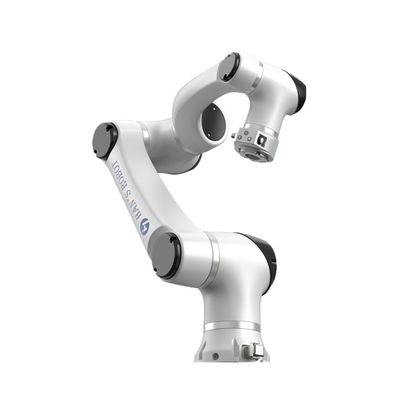

Han's robot for CNC loading and unloading robot and payload 5 Kg reach 800 mm Collaborative mini industrial robot
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Hans |
| Certification: | CE/ROHS |
Payment & Shipping Terms:
| Price: | Negotiable |
|---|---|
| Packaging Details: | One Han's robot for CNC loading and unloading robot and payload 5 Kg reach 800 mm Collaborative mini industrial robot packing with brown box, WG: 45kg<br>Controller and cables ,teachpendant packed with another brown box , WG:35Kg |
| Supply Ability: | 10 Set/Sets per Month |
|
Detail Information |
|||
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Condition: | New |
| Weight: | 65Kg | Dimension(L*W*H): | 60*60*60 |
| Power: | 3KW | Warranty: | 1 Year, 1 Year |
| Product Name: | Han's Robot For Loading And Unloading Robot And Mini Industrial Robot | Number Of Axis: | 6 Axis |
| Max Payload: | 5 Kg | Maximum Reach: | 800 Mm |
| Pose Repeatability(ISO 9283): | ±0.05mm | Material: | Aluminum Alloy |
| Protection Rating: | IP54 | Mounting Position: | Floor/ Ceiling/Wall |
| Life Time: | 30000h | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | None | After-sales Service Provided: | Online Support |
| Port: | Shanghai | ||
Product Description
Han's robot for CNC loading and unloading robot and payload 5 Kg reach 800 mm Collaborative mini industrial robot
Main Specifications:
Maximum reach:800 mm
Maximum payload:5 kg
Pose repeatability (ISO 9283):± 0.05 mm
Number of axes:6
Mounting position:Floor/ Ceiling/Wall
Lifetime:30000h
Standard:CE, TUV,KSc
Power consumption:200W
Power supply:DC 48V
I/O port:16 in/16 out
Screen:12 inch Resistive LCD touch screen
| Product Name | CNC robot arm Han's Elfin 5 payload 5 Kg 6 axis reach 800 mm Collaborative robot arm and arm robot China |
| Application | Han's robot for CNC loading and unloading robot and payload 5 Kg reach 800 mm Collaborative mini industrial robot;Han's robot; loading and unloading robot ;mini industrial robot |
| Model | Elfin 5 |
| Robot Arm | |
| Maximum reach | 800 mm |
| Maximum payload | 5 kg |
| Pose repeatability (ISO 9283) | ± 0.05 mm |
| Number of axes | 6 |
| Mounting position | Floor/ Ceiling/Wall |
| Lifetime | 30000h |
| Weight | 17 kg |
| Protection rating | IP54 |
| Standard | CE, TUV,KSc |
| Power consumption | 200W |
| Material | Aluminum alloy |
| Ambient temperature | 0-45°C |
| Environment humidity | 20-85%(No condensation) |
| Power supply | DC 48V |
| Protocol | CAN bus |
| A1 | ±135° |
| A2 | ±135° |
| A3 | ±135° |
| A4 | ±135° |
| A5 | ±135° |
| A6 | ±135° |
| Controller | |
| Size | 536mm*445mm*491mm |
| Weight | 20Kg |
| Cable length | 5m |
| Colour | Black |
| Protocol | Ethernet,Modbus-RTU/TCP |
| Power | 100-240V/AC,50-60HZ |
| Protection rating | IP54 |
| I/O port | 16 in/16 out |
| Teach pendant | |
| Size | 355mm*235mm*54mm |
| Weight | 1.8Kg |
| Screen | 12 inch Resistive LCD touch screen |
| Cable length | 4m |
| Protection rating | IP54 |
| Colour | Orange+black |
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
