6 rotating joints universal robots payload 16 kg applying as picking and placing robotic UR 16
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Universal Robots |
Payment & Shipping Terms:
| Price: | Negotiable |
|---|---|
| Packaging Details: | One 6 rotating joints universal robots payload 16 kg applying as picking and placing robotic UR 16 packing with fumigation wooden frame, WG: 11KG<br>Controller and other parts packing with brown box, WG: 75KG<br>Total WG: 20KG(>VG) |
| Supply Ability: | 5 Piece/Pieces per Month |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Gearbox, Motor, Pressure Vessel |
| Warranty: | 1 Year | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works |
| Showroom Location: | France, Germany, Brazil, India, Mexico, Russia, Spain, Thailand, Romania, Japan, Australia | Product Name: | UR 16 |
| Number Of Axis: | 6 Rotating Joints | Max Payload: | 16 Kg / 35.3 Lbs |
| Maximum Reach: | 900 Mm / 35.4 Ins | Pose Repeatability(ISO 9283): | ±0.1 Mm / ±0.0039 In (4 Mils) |
| Footprint: | 190mm | Mounting Position: | Floor, Wall, Shelf, Tilted, Inverted |
| Power Consumption: | Min 90W, Typical 125W, Max 250W | Material: | Aluminium, PP Plastics |
| Protection Rating: | IP54 | After-sales Service Provided: | Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | United Kingdom, Italy, France, Germany, Brazil, Mexico, Russia, Thailand, Japan |
| Port: | Shanghai | ||
Product Description

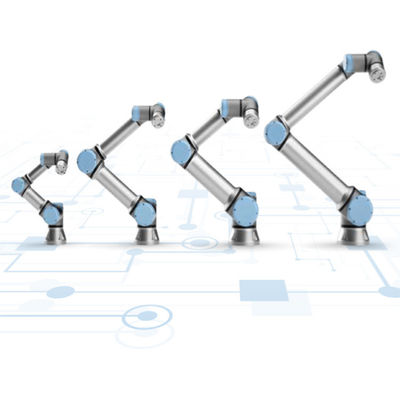

new collaborative robot UR 16e application industrial material handling robot arm owns 6 rotating joints
Main Specifications
Model: UR 16
Maximum reach: 900 mm / 35.4 ins
Maximum payload: 16 kg / 35.3 lbs
Pose repeatabilit: ±0.1 mm / ±0.0039 in (4 mils)
Number of axes :6 rotating joints
Weight: 33.1 kg / 73 lbs
Protection rating:IP54
| Production Name | Universal robot 16 |
| Model | UR 16 |
| Application | Collaborative Robot |
| Maximum reach | 900 mm / 35.4 ins |
| Maximum payload | 16 kg / 35.3 lbs |
| Pose repeatability (ISO 9283) | ±0.1 mm / ±0.0039 in (4 mils) |
| Number of axis | 6 |
| Mounting position | any angle |
| Footprint | |
| Weight | 33.1 kg / 73 lbs |
| Protection rating | IP54 |
| Controller | IRC5 Single Cabinet/IRC5 Compact |
| Motion range | |
| A1 | ± 360° |
| A2 | ± 360° |
| A3 | ± 360° |
| A4 | ± 360° |
| A5 | ± 360° |
| A6 | ± 360° |
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
