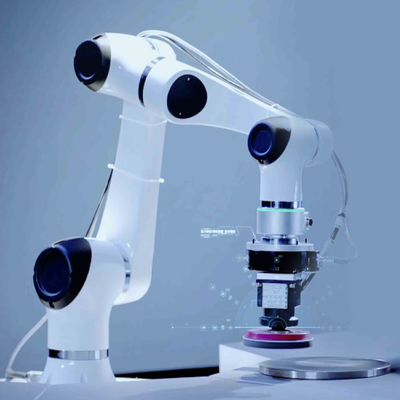

E05 IP54 IP66 6 Axis Collaborative Robot Arm 5KG 590mm
|Place of Origin:||CHINA|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||wodden cartons or meet customers' requirements|
|Delivery Time:||6-8 weeks|
|Payment Terms:||L/C, D/A, D/P, T/T|
|Supply Ability:||999 sets/month|
|Number Of Axes:||6axis||Type:||Hans Collaborative Robot Arm|
|After Warranty Service:||Video Technical Support, Online Support||Usage:||Welding Robot|
|Power Requirements:||200-600 V||Core Components:||PLC|
|Max. Payload:||5kg / 11 Lb||Positional Repeatability (mm):||±0.1mm|
|The Scope Of Work:||590mm||Joint Range:||±360°|
590mm 6 Axis Collaborative Robot Arm,
590mm IP66 Collaborative Robot Arm,
590mm E05 cobot robot arm
Robot Cobot Of Elfin E05 With IP54/IP66 IP Protection Level Collaborative Robot Arm 6 Axis
For common parts, we can deliver the goods within 3 days
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
Including inspection,repair and maintenance, we can give all kinds of technical support.
Our staffs will keep 24h online and answer your question very quickly.
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company.
The robot weight is just 1.6kg ,very safe to operate
2) High flexibility
7 degrees of freedom ensures wide working range
3) Easy teaching
The robot can be guided by hands
4) Open source
Free for secondary development.
|power||100W in typical cycle||180W in typical cycle||350W in typical cycle||450W in typical cycle|
|joint speed||J1-J4 180°/S J5-J6 200°/S||J1-J4 180°/S J5-J6 200°/S||J1-J4 180°/S J5-J6 200°/S||J1-J2 120°/S J3-J4 135°/S J5-J6 180°/S||J1-J2 120°/S J3-J4 135°/S J5-J6 180°/S|
|repeatability||±0.05mm/±0.03mm(under normal conditions)|
|degree of freedom||6|
|control box size||536*445*319mm|
|end I/O port||digital input:3,digital output:3,analog input:2|
|control box I/O port||digital input:16,digital output:16, analog input:2,analog output:2|
|I/O source||24V 2A|
|programming||graphical programming,remote process call|
|collaborative operation||10 advanced configurations for safety|
|main material||aluminum alloy|
|power input||200-240V AC,50-60Hz|
|cable||cable to connect the control box:5m,cable to connect teach pendant:5m|
|Applicable Industries||Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company|
|After Warranty Service||Video technical support, Online support|
|Local Service Location||Canada, United Kingdom, United States, France, Germany, Brazil, India, Russia, Spain, Thailand, Japan, Australia, Chile|
|Showroom Location||Canada, United Kingdom, United States, France, Germany, Brazil, India, Russia, Spain, Thailand, Chile, Japan, Australia|
|Machinery Test Report||Provided|
|Marketing Type||Hot Product 2021|
|Warranty of core components||1 Year|
|Core Components||Engineer, Bearing|
|Place of Origin||China|
|The scope of work||1300mm|
|Joint maximum velocity||J1-J4 180°/S J5-J6 200°/S|
|IP protection level||IP54/IP66|
With Elfin robots, there is no need to pay extra for safe operation the same as traditional robots. The robots have high collaborative performance and can perform a protective stop immediately when they encounter resistance, ensuring the safety among co-worker, workpieces, and production equipment.
More Flexible Deployment
Elfin robots can be mounted at any angle and installed anywhere to minimize the impact on the production lines. Redeployment requires very short time and is very suitable for small batches, customized and short-cycle production, which is the best choice for automation transformation.
Elfin robots can be easily teached by moving the end of the arm to the desired position or desired trajectory,which is greatly saves the programing time. 10 minutes is absolutely enough for building one simple pick and place program.
Fast, Stable Ether CAT bus communication
The controller and robot joint adopt industrial EtherCAT communication, which enables the system to have excellent control performance and strong an-interference ability.
dispensing, finishing, material handling, pick and place, assembly, palletizing, 3d printing, and remote tcp.
Q.How Long will You Need before Delivery?
A:We have many common models in stock, so that wecan deliver the goods very soon(less than 3 days).
