VT6L Collaborative CNC EPSON Robot Arm 6KG All In One 6 Axis
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Epson |
| Certification: | CE |
| Model Number: | TM14 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wodden cartons or meet customers' requirements |
| Delivery Time: | 6-8 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 999 sets/month |
|
Detail Information |
|||
| Number Of Axes: | 6axis | Robot Cable: | 3M (Standard), 5m (Optional), 10m (Optional |
|---|---|---|---|
| Type: | Epson Collaborative Robot Arm | After Warranty Service: | Video Technical Support, Online Support |
| Usage: | Cnc Robot | Power Requirements: | 200-600 V |
| Core Components: | PLC | Max. Payload: | 6kg |
| Positional Repeatability (mm): | ± 0.03 Mm | Reach: | 1000mm |
| Powder: | 220~240V | Weight: | 62kg |
| Software: | EPSON RC+ 7.0 | ||
| High Light: | CNC EPSON Robot Arm,VT6L EPSON Robot Arm,6 Axis cnc robot arm |
||
Product Description
Robotic arm VT6L manipulator robot arm All-in-One 6 axis cnc robot arm
Description:
all-in-one solution
- Full featured; ultra low cost — the same powerful features found in Epson’s high-end robots, at an incredibly affordable price; with a reach up to 900 mm and payload up to 6 kg
- Easy to use — intuitive and feature-packed Epson RC+ development software makes it easy to create powerful solutions
- SlimLine design — compact wrist pitch enables access to hard-to-reach areas in confined spaces
- Comes standard with 110 V and 220 V power — low wattage and power consumption
- Fast, easy integration — installs in minutes; requires less time and money for system integration
- Integrated vision guidance option — designed specifically for robot guidance; makes it easy to automate simple applications when vision is required
- Simplified cabling — hollow end-of-arm design makes end-of-arm tooling easier than ever
- No battery required for encoder — minimizes downtime and reduces overall cost of ownership
- Application versatility — ideal for machine-tool and injection-molding load/unload, pick-and-place, dispensing and simple assembly projects
Core Specifications:
Arm Length / Reach:- Max Reach – P Point: Joints #1-5 Center 920 mm
- Max Reach – P Point: Joints #1-6 Flange Surface 1,000 mm
- Rated 3 kg
- Max. 6 kg
- Joint #1 ± 170°
- Joint #2 -160° ~ +65° (225°)
- Joint #3 -51° ~ +190° (241°)
- Joint #4 ± 200°
- Joint #5 ± 125°
- Joint #6 ± 360°
- Joint #4 0.3 kg·m2
- Joint #5 0.3 kg·m2
- Joint #6 0.1 kg·m2
- Standard I/O: In 24/Out 16
- Remote I/O: In 8/Out 8 (Remote function assigned to standard I/O)

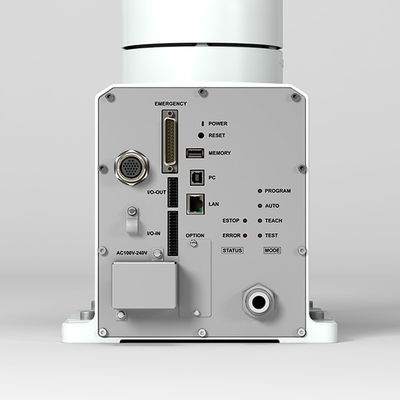

Controller:Built-inWeight:40 kg / 88.2 lb (cables not included)Robot Cables:Power cable length: 5 mSafety Regulations:CE Mark, EMC Directive, Machinery Directive, ANSI/RIA R15.06-2012, NFPA 79 (2007 Edition)Power:AC 100 - 240 V single phasePower Consumption:1.2 kVaInstallation Environment:
- Standard
- Cleanroom (ISO 4) now available
- IP67 coming soon
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company.
Application:
dispensing, finishing, material handling, pick and place, assembly, palletizing, 3d printing, and remote tcp.
