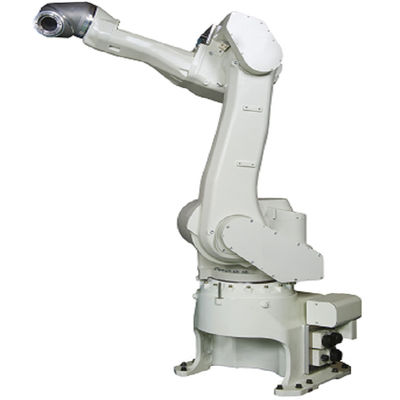

Floor Mounting KJ194 6 Axis Painting Robot Explosion Proof
|Place of Origin:||CHINA|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||wodden cartons or meet customers' requirements|
|Delivery Time:||6-8 weeks|
|Payment Terms:||L/C, D/A, D/P, T/T|
|Supply Ability:||999 sets/month|
|Number Of Axes:||6axis||Pose Repeatability:||±0.05mm|
|Type:||Kawasaki Painting Robot Arm||After Warranty Service:||Video Technical Support, Online Support|
|Usage:||Palletiseren Robot||Power Requirements:||200-600 V|
|Core Components:||PLC, Motor||Payload:||Wrist:15kg Arm:25kg|
|Positional Repeatability (mm):||±0.06||Max. Reach (mm):||1940mm|
Floor Mounting 6 axis painting robot,
KJ194 6 axis painting robot,
Explosion Proof industrial 6 axis robot
industrial robot china and used industrial robot KJ194 robotic painter
The floor mounting KJ194 explosion-proof painting robot features a 3R (Roll, Roll, Roll) hollow wrist with inner diameter of 70 mm inner to accommodate hoses as well as a slim and lighweight body with a wide motion range. Painting equipment can be mounted on the upper arm.
- Machine Tending
- Material Handling
|Maximum payload||Wrist:15kg Arm:25kg|
|Positional repeatability||± 0.5mm|
|Number of axes||6|
|Mass||Floor:530kg, Shelf & Wall:520kg|
|mounting||Floor, Shelf, Wall|
|Color||Munsell 10GY9/1 equivalent|
|Working range||See attached drawing|
|Driving motor||Brushless AC Servomotor|
|Arm rotation (JT1)||±120°|
|Arm out-in (JT2)||(-80°-130°)|
|Arm up-down (JT3)||(-65°-90°)|
|Wrist swivel (JT4)||±720°|
|Wrist bend (JT5)||±720°|
|Wrist twist (JT6)||±410°|
Conventional high-payload robots require a large counter-balance weight which can cause interference in the work zone as well as limit the overall working range of the robot. Kawasaki's innovative Advanced Link Structure design for JT3 up and down arm movement eliminates the need for this counter-balance thereby reducing interference and increasing work envelope.
ULTRA HIGH WRIST TORQUE
Using advanced engineering techniques in motor technology, the robot is capable of industry-leading wrist torques of 5,488 Nm for the MX700N and 15,000N.m for the MG15HL. This high wrist torque provides the ability to significantly offset heavy payloads from the tool mounting flange.
M Series Robots can be programmed in two ways, via the robot teach pendant or a computer, and using one of the two Kawasaki's programming methodologies, Block Step or AS Language. The Block Step programming method eliminates time consuming program teaching with auto-path generating software. The powerful AS Language provides ultimate flexibility via any word processor text file and enables the programmer to create advanced logic, manipulate program locations, integrate peripheral components and control the application process.
For common parts, we can deliver the goods within 3 days
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
Including inspection,repair and maintenance, we can give all kinds of technical support.
Our staffs will keep 24h online and answer your question very quickly.
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company.
dispensing, finishing, material handling, pick and place, assembly, palletizing, 3d printing, and remote tcp.
Q.How Long will You Need before Delivery?
A:We have many common models in stock, so that wecan deliver the goods very soon(less than 3 days).
