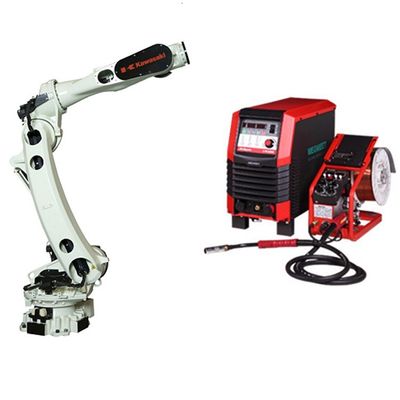

269mm CX165L KAWASAKI Robot Arm With E02 Controller Educational Robotic Arm
|Place of Origin:||CHINA|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||wodden cartons or meet customers' requirements|
|Delivery Time:||6-8 weeks|
|Payment Terms:||L/C, D/A, D/P, T/T|
|Supply Ability:||999 sets/month|
|Number Of Axes:||6axis||Pose Repeatability:||±0.05mm|
|Type:||Kawasaki Palletizing Arm||After Warranty Service:||Video Technical Support, Online Support|
|Usage:||Palletiseren Robot||Power Requirements:||200-600 V|
|Core Components:||PLC||Max. Payload::||700kg|
|Positional Repeatability (mm):||±0.06||Max. Reach (mm):||2540mm|
CX165L KAWASAKI Robot Arm,
700kg KAWASAKI Robot Arm,
kawasaki welding robot
Educational robotic arm and robot arm reach 269 mm CX165L industrial welding robot with E02 Controller for Kawasaki
The Kawasaki CX165L robot is a 6-axis robot arm, it offers a 165 kg payload and 2597 mm reach. The repeatability of the Kawasaki CX165L robot is 0.06 mm.
Common applications of the Kawasaki CX165L robot include: dispensing, finishing, material handling, pick and place, assembly, palletizing, 3d printing, and remote tcp.
- Friction Spot Joining
- Machine Tending
- Material Handling
- Material Removal
- Sealing / Dispensing
- Spot Welding
|product name||Educational robotic arm and robot arm reach 269 mm CX165L industrial welding robot with E02 Controller for Kawasaki|
|Degrees of Freedom (axes)||6|
|Max. Reach (mm)||2,699|
|Positional Repeatability (mm)||±0.06|
|Motion Range (°)||Arm Rotation (JT1)||±160|
|Arm Out-in (JT2)||+80 - −60|
|Arm Up-down (JT3)||+95 - −75|
|Wrist Swivel (JT4)||±210|
|Wrist Bend (JT5)||±120|
|Wrist Twist (JT6)||±360|
|Max. Speed (°/s)||Arm Rotation (JT1)||130|
|Arm Out-in (JT2)||125|
|Arm Up-down (JT3)||125|
|Wrist Swivel (JT4)||180|
|Wrist Bend (JT5)||180|
|Wrist Twist (JT6)||280|
|Allowable Moment (N•m)||Wrist Swivel (JT4)||952|
|Wrist Bend (JT5)||952|
|Wrist Twist (JT6)||550|
|Allowable Moment of Inertia (kg•m2)||Wrist Swivel (JT4)||99|
|Wrist Bend (JT5)||99|
|Wrist Twist (JT6)||49.5|
|Installation Environment||Ambient Temperature (°C)||0 - 45|
|Relative Humidity (%)||35 - 85 (No dew, nor frost allowed)|
|Controller / Power Requirements (kVA)||America||E02 / 7.5|
|Europe||E02 / 7.5|
|Japan&Asia||E02 / 7.5|
Conventional high-payload robots require a large counter-balance weight which can cause interference in the work zone as well as limit the overall working range of the robot. Kawasaki's innovative Advanced Link Structure design for JT3 up and down arm movement eliminates the need for this counter-balance thereby reducing interference and increasing work envelope.
ULTRA HIGH WRIST TORQUE
Using advanced engineering techniques in motor technology, the robot is capable of industry-leading wrist torques of 5,488 Nm for the MX700N and 15,000N.m for the MG15HL. This high wrist torque provides the ability to significantly offset heavy payloads from the tool mounting flange.
M Series Robots can be programmed in two ways, via the robot teach pendant or a computer, and using one of the two Kawasaki's programming methodologies, Block Step or AS Language. The Block Step programming method eliminates time consuming program teaching with auto-path generating software. The powerful AS Language provides ultimate flexibility via any word processor text file and enables the programmer to create advanced logic, manipulate program locations, integrate peripheral components and control the application process.
For common parts, we can deliver the goods within 3 days
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
Including inspection,repair and maintenance, we can give all kinds of technical support.
Our staffs will keep 24h online and answer your question very quickly.
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company.
dispensing, finishing, material handling, pick and place, assembly, palletizing, 3d printing, and remote tcp.
Q.How Long will You Need before Delivery?
A:We have many common models in stock, so that wecan deliver the goods very soon(less than 3 days).
