• OTC FD-V130 6 Axis Kuka Robot With Controller For Palletizer Material Handling
OTC FD-V130 6 Axis Kuka Robot With Controller For Palletizer Material Handling

OTC FD-V130 6 Axis Kuka Robot With Controller For Palletizer Material Handling

Product Details:

Place of Origin: CHINA
Brand Name: kuka
Certification: CE
Model Number: New Product 2020

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wodden cartons or meet customers' requirements
Delivery Time: 6-8 weeks
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 999 sets/month
Get Best Price Contact Now

Detail Information

Dimension(L*W*H): 1050 Mm X 1050 Mm Number Of Axes: 6
Pose Repeatability: ± 0.08 Mm Core Components: PLC
Weight: 734 Teach Pendant: KUKA SmartPAD
Warranty Of Core Components: 1 Year Pose Repeatability (ISO 9283): 0.05MM
Type: Kuka Grinding Robot Arm Power: 200-600V
Reach: 2.139m Payload: 130kg
High Light:

FD-V130 6 axis kuka robot


OTC 6 axis kuka robot


Kuka 6 axis industrial robots

Product Description

pallatizing robot for palletizer material-handling FD-V130 6 axis robot arm and robot with controller and for OTC


Specification Value
Number of Axes 6
Maximum Payload Capacity 286 lbs. (130 kg)
Positional Repeatability +/- 0.003" (+/- 0.08 mm)
Horizontal Reach 84" (2139 mm)
Vertical Reach 142" (3615 mm)
Upper Arm Payload Capacity 55 lbs. (25 kg)
Mass 1635 lbs. (743 kg)
Installation Type Floor / Ceiling

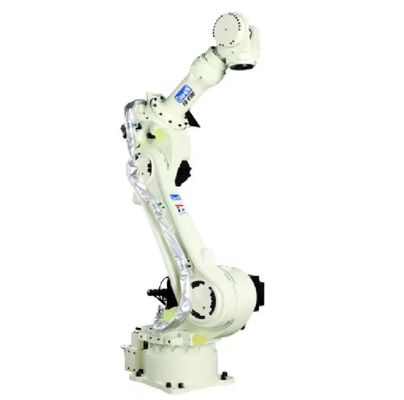

Our FD-V130, 6-axis robot is designed for material-handling and other applications that require a larger payload and reach. Built-in application cabling, utilities and user portal simplifies end-of-arm tooling integration and installation.



Offers a wide working range with an independently articulated arm

• Improved vibration restraining control provides smooth robot movement

• Single source technology – all components are manufactured by OTC Daihen.

• Highly versatile design supports picking, cutting, load/unload, welding, assembly, finishing and sorting applications.

• Through-arm support for end-of-arm tool interfacing including, pneumatic, power, I/O (digital, analog and network) and user/application-specific utilities.


• Windows XP based open architecture

• Large memory capacity and 40 Input / 40 Output control signals

• Advanced PLC functions allow for ladder diagram editing directly through the teach pendant

• Network capabilities – connects to Ethernet, DeviceNet, and PROFIBUS connections (may require additional hardware)


• Icon displays assist in quick & easy teaching

• 640×480 VGA color screen with LED backlight 65536 color display

• 3 position enable switch provides increased safety

• Multi-screen function allows user to view up to 4 screens simultaneously

• On-screen help function with complete instruction manuals

• Standard touch screen display with jog dial operation


Applicable Industries:

Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company.




dispensing, finishing, material handling, pick and place, assembly, palletizing, 3d printing, and remote tcp.
