4 Axis Tmrobotics
|Place of Origin:||CHINA|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||wodden cartons or meet customers' requirements|
|Delivery Time:||6-8 weeks|
|Payment Terms:||L/C, D/A, D/P, T/T|
|Supply Ability:||999 sets/month|
|Number Of Axes:||4axis||Robot Cable:||3M (Standard), 5m (Optional), 10m (Optional|
|Type:||Epson Collaborative Robot Arm||After Warranty Service:||Video Technical Support, Online Support|
|Usage:||Medical Applications, Electronics Industry||Power Requirements:||200-600 V|
|Core Components:||PLC||Max. Payload:||3kg|
|Positional Repeatability (mm):||± 0.03 Mm||Arm Length:||400 Mm|
|Software:||EPSON RC+ 7.0|
4 Axis Tmrobotics,
400mm tm collaborative robot

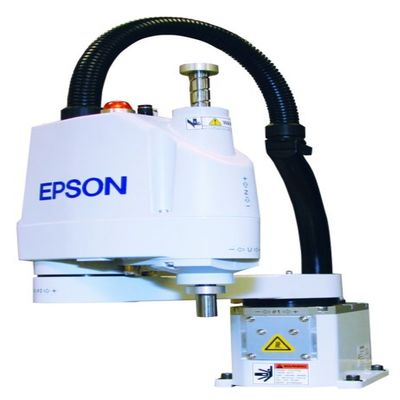

Robotic arm manipulator unique crank options EpSoN scara G3-251 3kg payload Industrial robot
G3-Series SCARA robots are the right choice for use in confined spaces, as despite their small size, they have a substantial work envelope. Because many assembly tasks can only be performed in one arm orientation, we've developed the Epson G3 series with an arm that is curved to the left or right. This unique arm geometry allows maximum square working area to be increased by up to 40 percent. Compact high performance G3-Series SCARA robots offer performance among the best in the industry, with outstanding range of motion, and maximum footprint efficiency. Cycle times can be as low as 0.41 seconds, even during extended use. A unique high-rigidity arm design means very low residual vibration, with smooth start and stop motion, even at high speeds. Extensive configuration options G3 arms are available in 250, 300 and 350mm arm lengths, and G3-Series robots can be supplied as tabletop, wall or ceiling-mounted units as well as clean room options. Outstanding versatility SCARA G3-Series robots are used in a huge range of industries, from assembling automotive components, mobile phones and computer parts, to creating medical equipment and packaging medications, not to mention lab automation and scientific analysis.
|Robot type||4-axis, SCARA robot|
|Unique||straight arm||straight arm or
lefty arm or
|Payload||nominal / max. (kg)||1 / 3|
|Arm length||arm 1+2 (mm)||250 (120+130)||300 (170+130)||350 (220+130)|
|Z-axis length (mm)
stand. / clean room
|150 / 120|
|Max. speed||arm 1+2 (mm/s)||3550||3950||4350|
|Repeatability||arm 1+2 (mm)||± 0.008||± 0.010||± 0.010|
|Z-axis (mm)||± 0.010|
|U-axis (°)||± 0.005|
|Inertia||nominal / max. (kg/m2)||0.005 / 0.05|
|Z-axis diameter||outer / inner (mm)||16 H7 / 11|
|pneumatic||1 x ø 4 / 2 x ø 6|
|Mounting||Floor mount||Floor mount
cleanroom (ISO3) and ESD
|Mounting holes||4 x ø 9 mm holes
120 x 120 mm
|power/signal cable (m)||standard: 3 m
option: 5m, 10m, 20m
|Standard||RoHS Directive: 2002/92/EC
NFPA 79 (2007 Edition)
CSA/CAN Z434-03 (February 2003)
EC Machinery Directive 2006/42/EC
For common parts, we can deliver the goods within 3 days
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
Including inspection,repair and maintenance, we can give all kinds of technical support.
Our staffs will keep 24h online and answer your question very quickly.
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company.
dispensing, finishing, material handling, pick and place, assembly, palletizing, 3d printing, and remote tcp.
Q.How Long will You Need before Delivery?
A:We have many common models in stock, so that wecan deliver the goods very soon(less than 3 days).
